Diamond VC500ST One Touch Standalone Digital Converter

$119.99

Out of stock

Add to Wishlist
Add to Wishlist
SKU: VC500ST Categories: ,

Description

Diamond One Touch Standalone Digital Converter

support button

In today’s world, the personal computer does just about anything related to digital media that we can think of. But sometimes we just want a simpler and easier way to enhance our digital world without the need for a PC. The all-new Diamond Standalone Personal One-Touch VHS to Digital Converter (VC500ST) is a device that can do just that. Furthermore, it is designed to capture and convert video from analog sources to digital files (MP4), all without the need for a computer.

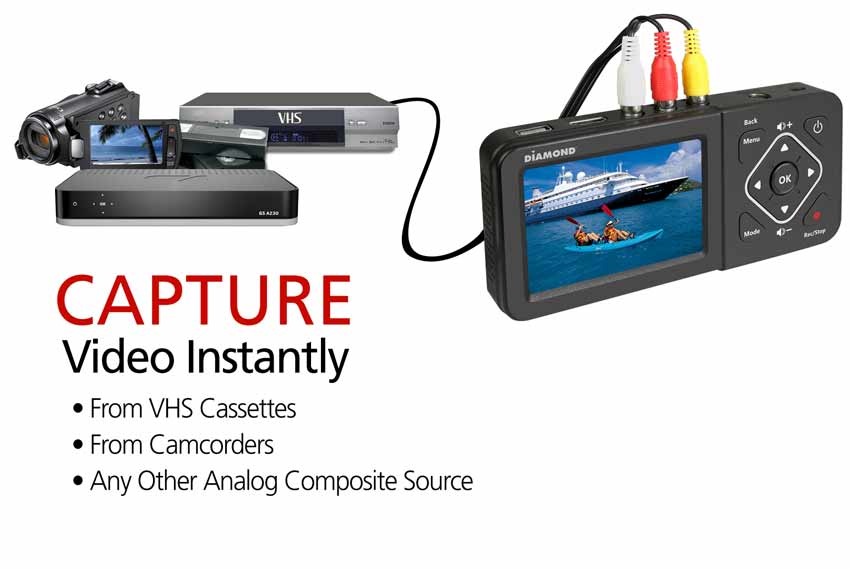

The sleek and compact design of the VC500ST allows you to easily connect it to a VHS Player/VCR. Convert and save old videos from VHS cassettes. In addition, you can convert your personal home videos from camcorders and video cameras to digital format. Or you can record your favorite TV shows from cable set-top boxes. Finally, with the built-in display, you can view and record them straight to the VC500ST.

Features of the Diamond One Touch Standalone Digital Converter

  • Best Simple solution for Capturing and Saving your VHS tapes, Hi8 Mini DV tapes, DVD’s, Set top recorded videos to Digital Format (MP4) without the need of a Computer, No drivers, No software to install.
  • Standalone, No Computer required, built in 3.5” LCD display for preview and playback, HDMI output for large screen play back. As a result, you can record directly to SD card or USB Flash Drive (SD/USB Flash Drive Not included). Also includes a built-in speaker.
  • Pause Recording option, lets you record and skip unwanted scenes without creating multiple files. Also, supports scheduled recording, Once, Daily or weekly options. Auto-stop recording supports 60,90,120 and 150min selectable limits.
  • Convert videos into digital files and view or edit them on your PC later on. Share them on social media.
  • Hardware Encoder 480P MPEG4, (PAL support 576i)
  • USB Type A Flash Drive up to 512G support.
  • SD card  512 GB
  • FAT32/NTFS/exFAT Storage Support. 4GB maximum file size.
  • 2TB (HDD) GPT Partions 4TB (HDD) MBR Partitions
  • FREE!! Power Director 12 editing  software (PC required for editing).

VC500ST page image 1C

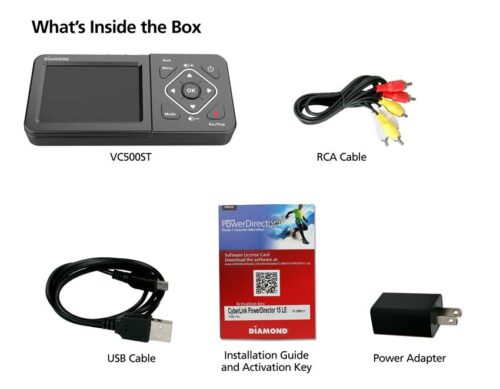

Package Contents:

  • VC500ST
  • RCA Cable
  • USB Cable
  • Installation Guide and Activation Key for Power Director editor only
  • Power Adapter

FAQ

Q: The VC500ST Converter is not recording.

A: Please make sure the proper source input is selected on the        menu.

Please make sure the storage device USB Flash Drive or SD card inserted.

Q: There is no file preview in Playback menu.

A: Please make sure there are recordings in the USB Flash Drive or SD card.

If you copy the external files to USB Flash Drive or SD card, videos should be saved in video folder, pictures should be saved in photo folder. Not all the video files could be detected & playback.

Q: The VC500ST Converter screen freezes.

A: You can always long press Power button for 10 seconds to reboot the VC500ST Converter. Or simply unplug the power cable and plug in again.

Q: VC500ST SD/TF card / USB HDD is not detected Converter.

A: For TF (microSD) card, please make sure good SD adapter is used. It’s highly possible the connector pin is oxidized with bad quality adapter used over time.

Some SD/TF card which was previously used/formatted by other device such as digital camera may have hidden partition and need to be formatted by PC tool like PhoenixCard before use.

Q: My VC500ST Converter doesn’t show video on LCD screen.

A: Please make sure the S-Video or AV source input is connected and selected properly on the menu. If you connect HDMI output to a monitor, then image will be on the monitor not the LCD screen.

Specifications

CVBS/S-Video Input

NTSC 720 x 480i 60 / PAL 720 x 576i 50

HDMI Output

1280 x 720p 60

Output Signal

HDMI, Speaker

Recording

720 x 480p 60 / 720 x 576p 50

Supported File System

FAT32, FAT, NTFS, exFAT

Record Format

MP4 (H.264)

Recording Capacity

4GB max per file

Storage Capacity

128GB USB Flash Drive

128GB SD card

4TB (HDD) HDD must be self powered by separate power supply

System Requirements

(Optional) HDMI display and HDMI cable for playback through HDMI out to large screen TV SD card for storage (Not included) USB Flash Drive for storage (Not included) (Optional) PC for video editing

FAQ

Q: The VC500ST Converter is not recording.

A: Please make sure the proper source input is selected on the        menu.

Please make sure the storage device USB Flash Drive or SD card inserted.

Q: There is no file preview in Playback menu.

A: Please make sure there are recordings in the USB Flash Drive or SD card.

If you copy the external files to USB Flash Drive or SD card, videos should be saved in video folder, pictures should be saved in photo folder. Not all the video files could be detected & playback.

Q: The VC500ST Converter screen freezes.

A: You can always long press Power button for 10 seconds to reboot the VC500ST Converter. Or simply unplug the power cable and plug in again.

Q: VC500ST SD/TF card / USB HDD is not detected Converter.

A: For TF (microSD) card, please make sure good SD adapter is used. It’s highly possible the connector pin is oxidized with bad quality adapter used over time.

Some SD/TF card which was previously used/formatted by other device such as digital camera may have hidden partition and need to be formatted by PC tool like PhoenixCard before use.

Q: My VC500ST Converter doesn’t show video on LCD screen.

A: Please make sure the S-Video or AV source input is connected and selected properly on the menu. If you connect HDMI output to a monitor, then image will be on the monitor not the LCD screen.

Video

Product Sheet PDF

Download the VC500ST Line sheet below:

VC500ST One Touch Standalone Digital Converter Line Sheet

Support & Downloads

User Guide

Power Director 15

Prop 65 WARNING

Prop 65 Warning
